Home / Products / Empire

High Bay & Low Bay

Empire

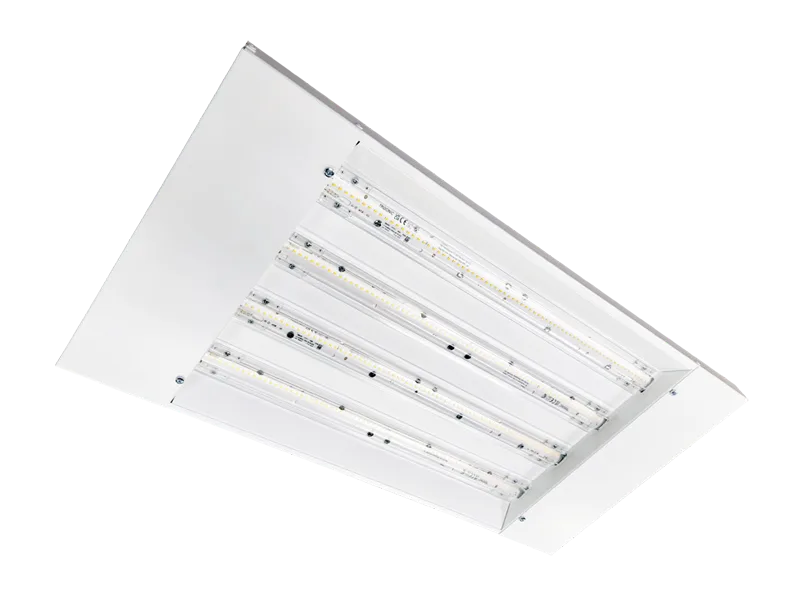

Empire - Architectural Luminaire specification image

Made in UK

5 Year Warranty

IP20 Rated

CE

Key Features

Body constructed from powder coated steel
High racking (narrow beam) lens or open areas (medium beam) lens
Tridonic or Philips LED modules and drivers
Efficacies of over 160 luminaire lumens per watt
High colour consistency 3 step MacAdam
High colour rendering CRI>80
Various additional mounting brackets available
IP20 rated
Wireless option available
LiFePO4 Lithium Battery for extended emergency life
5 year warranty on LED system

Download Data Sheet (PDF)

Technical Dimensions

Click to expand

Empire Technical Dimensions & Drawing

High Bay & Low Bay

Empire

Body Width

415mm Width 595mm Width 595mm Width

Driver

Standard DALI Wireless Dim 1-10V Touch Dimming

Output (Size-Dependent)

Colour Temperature

3000K 4000K 5000K

Sensor

No Sensor Batten Fit Sensor Low (up to 7m) Batten Fit Sensor Mid (up to 12m) Batten Fit Sensor High (up to 20m) Inbuilt Sensor Low (up to 7m) Inbuilt Sensor Mid (up to 12m) Inbuilt Sensor High (up to 20m)

Emergency Module

No Emergency 3 Hour Emergency Self-Test 3 Hour Emergency DALI EM Pro 3 Hour Emergency Wireless Emergency

Lens / Beam Angle

60° Narrow Beam 90° Medium Beam

Finish / Colour

White (RAL 9016) Black (RAL 9005) Custom

Generated Specification Code

EP-4-S-12-3---NB-W

Use this code to request a quote or specify this product in your lighting plans.

Request Quote / Consultation
