Meridian Sf
Linear Lights
Meridian Sf
Made in UK
5 Year Warranty
IP20 Rated
CE
Key Features
Extruded aluminium housing
Snap in/out opal diffuser for general illumination
Microprism diffuser available to aid in achieving UGR<19
Tridonic or Philips LED modules and drivers
Downlight only
Supplied with adjustable 3m drop wire suspension kit and flex
Stand alone or continuous run lighting system
Lit corner and T section available
Infill sections and blanking panels available
Multiple coloured diffuser inserts available
Bespoke sizes, shapes and outputs made to order
High colour consistency 3 step MacAdam
High colour rendering CRI>80
Various powder coated finishes
IP20 rated
Wireless option available
LiFePO4 Lithium Battery for extended emergency life
5 year warranty on LED system
Download Data Sheet (PDF)

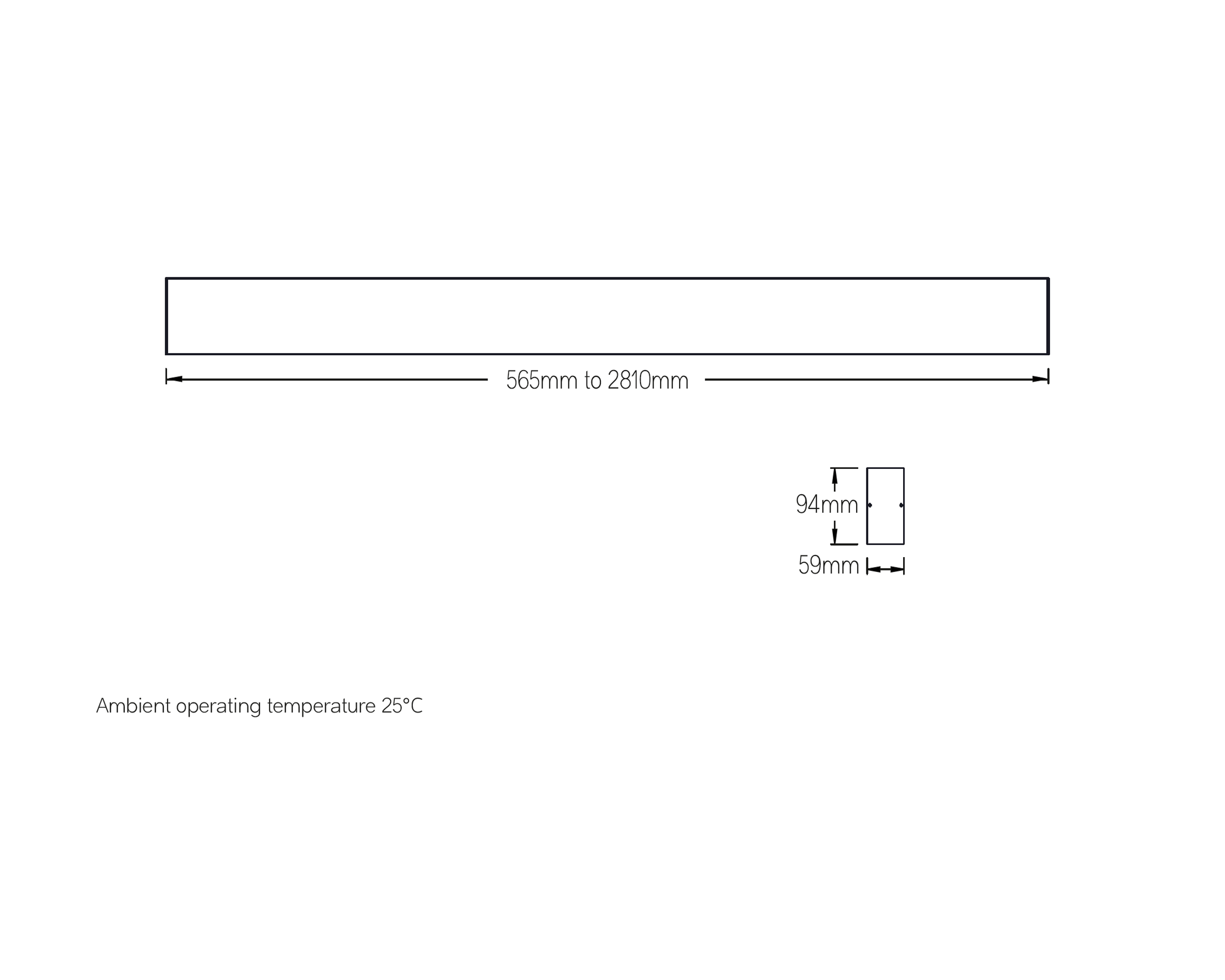

Technical Dimensions
Click to expand
Linear Lights
Meridian Sf
Body Length
565mm
845mm
1125mm
1405mm
1685mm
1965mm
2250mm
2810mm
System Configuration
Stand Alone
Continuous Run Start Section
Continuous Run Centre Section
Continuous Run End Section
90° Lit Corner Module
Driver
Standard
DALI
Wireless Dim
1-10V
Touch Dimming
Output (Size-Dependent)
Colour Temperature
3000K
4000K
Integrated Sensor
No Sensor
Integrated PIR Motion Sensor
Emergency Module
No Emergency
3 Hour Emergency
Self-Test 3 Hour Emergency
DALI EM Pro 3 Hour Emergency
Wireless Emergency
Diffuser
Opal Diffused
Microprism (UGR < 19)
Custom
Finish / Colour
White (RAL 9016)
Black (RAL 9005)
Silver Anodised Finish
Custom
Generated Specification Code
MSF-06-SA-S-02-3---OP-W
📋
Use this code to request a quote or specify this product in your lighting plans.
Request Quote / Consultation
