Quartet QCL
Spotlights

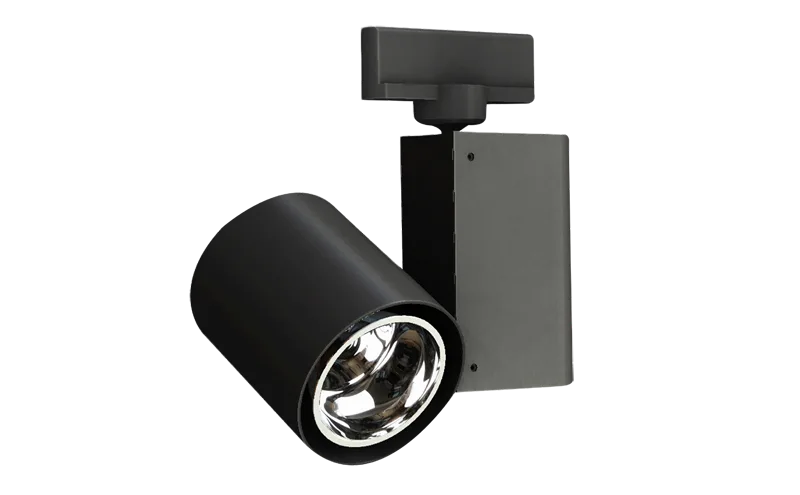

Quartet QCL
Made in UK
5 Year Warranty
IP20 Rated
CE
Key Features
Body constructed from powder coated steel
Passive cooling aluminium heatsink
Twist lock metalised polycarbonate reflector
Interchangeable reflectors
Tridonic LED modules and drivers
Surface mount version available for areas without track
High colour rendering
3 step MacAdam CRI 80/90/95
2 step MacAdam CRI 97 Art
Anti-Glare cowl and barn door accessories available
Wireless option available
5 year warranty on LED system
Download Data Sheet (PDF)
Technical Dimensions
Click to expand
Spotlights
Quartet QCL
Driver
Standard
DALI
Wireless Dim (Casambi)
1-10V with On-Board Potentiometer*
Lumen Output
900 Lumens
1500 Lumens
2100 Lumens
2700 Lumens
Custom
Colour Rendering Index
Ra > 80 (Standard)
Ra > 90 (High Fidelity)
Ra > 95 Fashion (3250K Only)
Ra > 97 Art Gallery (3000K Only)
Colour Temperature
2700K
3000K
3250K
4000K
Beam Angle / Reflector
Narrow Beam (15°)
Medium Beam (30°)
Wide Beam (50°)
Mounting Option / Adapter
3-Circuit Eurotrack / Global Adapter
Single Circuit Track Adapter
DALI In-Track Data Adapter
Surface Monopoint Ceiling Base
Finish / Colour
White (RAL 9016)
Black (RAL 9005)
Silver (RAL 9006)
Custom
Generated Specification Code
QCL-S-10-S-3-NB-TC-W
📋
Use this code to request a quote or specify this product in your lighting plans.
Request Quote / Consultation
