Spotlights

Quartet QMR

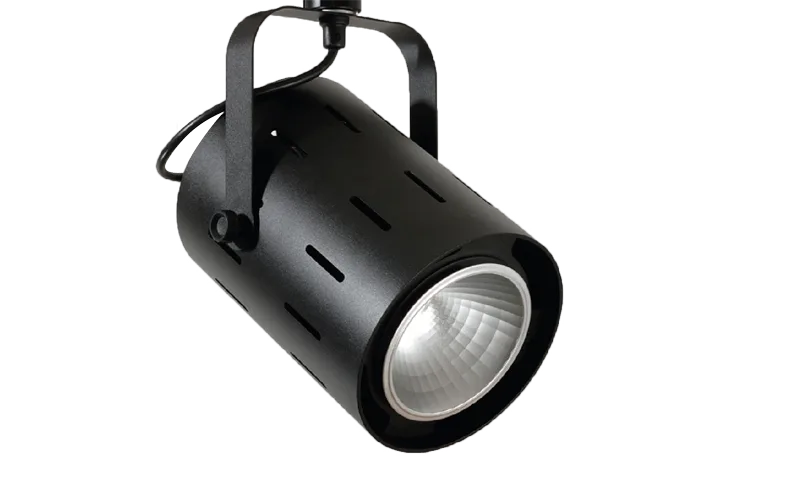

Quartet QMR - Architectural Luminaire specification image

Made in UK

5 Year Warranty

IP20 Rated

CE

Key Features

Body constructed from powder coated steel
Passive cooling aluminium heat sink
Interchangeable reflectors
Tridonic LED modules and drivers
Surface mount version available for areas without track
High colour rendering
3 step MacAdam CRI 80/90/95
2 step MacAdam CRI 97 Art
Wireless option available
5 year warranty on LED system

Download Data Sheet (PDF)

Technical Dimensions

Click to expand

Quartet QMR Technical Dimensions & Drawing

Spotlights

Quartet QMR

Driver

Standard DALI Wireless Dim (Casambi) 1-10V with Potentiometer* Triac Phase Dimming

Lumen Output

2100 Lumens 3300 Lumens 4400 Lumens 5500 Lumens Custom

Colour Rendering Index

Ra > 80 (Standard) Ra > 90 (High Fidelity) Ra > 95 Fashion (3250K Only) Ra > 97 Art Gallery (3000K Only)

Colour Temperature

2700K 3000K 3250K 4000K

Beam Angle / Reflector

Narrow Beam (15°) Medium Beam (30°) Wide Beam (40°)

Mounting Option / Adapter

3-Circuit Global Track Adapter Single Circuit Track Adapter DALI Track Adapter Surface Monopoint Base

Finish / Colour

White (RAL 9016) Black (RAL 9005) Silver (RAL 9006) Custom

Generated Specification Code

QMR-S-20-S-27-NB-TC-W

Use this code to request a quote or specify this product in your lighting plans.
