Quartet QTL
Spotlights

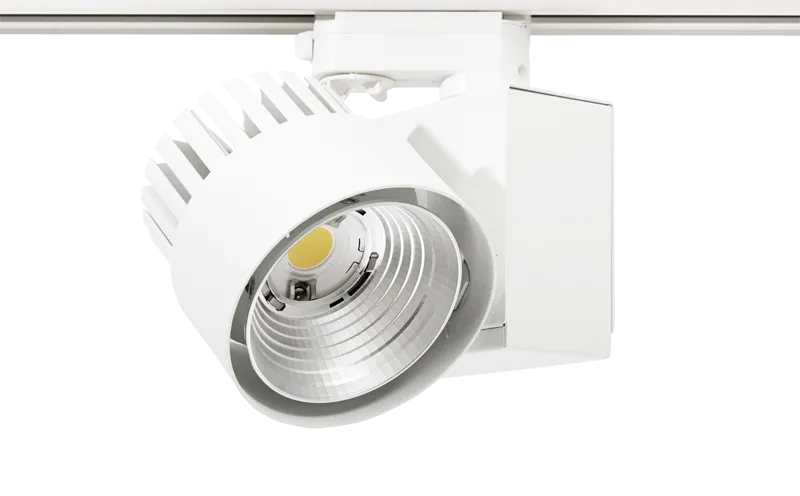

Quartet QTL
Made in UK
5 Year Warranty
IP20 Rated
CE
Key Features
Body constructed from powder coated steel
Passive cooling aluminium heat sink
Twist lock metalised polycarbonate reflector
Interchangeable reflectors
Tridonic LED modules and drivers
Surface mount version available for areas without track
High colour rendering
3 step MacAdam CRI 80/90/95
2 step MacAdam CRI 97 Art
Wireless option available
5 year warranty on LED system
Download Data Sheet (PDF)
Technical Dimensions
Click to expand
Spotlights
Quartet QTL
Driver
Standard
DALI
Wireless Dim (Casambi)
1-10V with Potentiometer*
Lumen Output
900 Lumens
2100 Lumens
3300 Lumens
4400 Lumens
Custom
Colour Rendering Index
Ra > 80 (Standard)
Ra > 90 (High Fidelity)
Ra > 95 Fashion (3250K Only)
Ra > 97 Art Gallery (3000K Only)
Colour Temperature
2700K
3000K
3250K
4000K
Beam Angle / Reflector
Narrow Beam (20°)
Medium Beam (34°)
Wide Beam (50°)
Mounting Option / Adapter
3-Circuit Global Track Adapter
Single Circuit Track Adapter
DALI Track Adapter
Surface Monopoint Base
Finish / Colour
White (RAL 9016)
Black (RAL 9005)
Silver (RAL 9006)
Custom
Generated Specification Code
QTL-S-10-S-2-20-TC-W
📋
Use this code to request a quote or specify this product in your lighting plans.
